0.1-50mm Zirconia Ceramic Ball, Grinding Ball

Name: 0.1-50mm Zirconia Ceramic Ball, Grinding Ball
Brand: Kingda
SKU: 160497074

Kingda Y-TZP consists of yttrium stabilized zirconium oxide. Yttrium Stabilized Zirconia (Y-TZP) is the strongest ceramic material we offer. Y-TZP is a purely tetragonal phase, fine grain material.Mainly used for ultra-fine grinding and dispersing of "zero pollution" and high viscosity and high hardness materials.

Send Inquiry

Product Details

0.1-50mm Zirconia Ceramic Ball, Grinding Ball

Products Description

Kingda Y-TZP consists of yttrium stabilized zirconium oxide. Yttrium Stabilized Zirconia (Y-TZP) is the strongest ceramic material we offer. Y-TZP is a purely tetragonal phase, fine grain material.

Chemical Composition

Composition	ZrO₂	Y₂O₃	Other
Content %	94.8±0.2	5.1±0.1	0.1%

Physical Properties:

Specific Gravity g/cm³	Bulk Density g/cm³	Hardness Hv	Fracture Toughness MPam^1-2	Crushing Load KN (Φ2.0mm)	Grain size um	Wear loss (%)	Sphericity (%)
≥6.02	≥ 3.70	≥1250	9	≥20	≤0.5	≤0.08	≥98

Ball Size

Size (mm)	Size (mm)	Size (mm)	Size (mm)	Size (mm)
Φ0.08-0.12	Φ0.12-0.18	Φ0.18-0.22	Φ0.22-0.28	Φ0.28-0.35
Φ0.3-0.4	Φ0.4-0.6	Φ0.6-0.8	Φ0.8-1.0	Φ1.0-1.2
Φ1.2-1.4	Φ1.4-1.6	Φ1.6-1.8	Φ1.8-2.0	2.0-2.2
Φ2.2-2.4	Φ2.4-2.6	Φ2.6-2.8	Φ2.8-3.0	Φ3.0-3.2
Φ3.2-3.5	Φ4	Φ5	Φ6	Φ7
Φ8	Φ10	Φ12	Φ15	Φ17
Φ20	Φ25	Φ30	Φ40	Φ50

Applications

It is widely used for grinding, dispersing and polishing as following: inkjets inks, electronic slurries, raw material of battery, screen printing inks, coating, painting, pigment, ceramic and cosmetic, jewelry and other nanoparticles products.

Products Details

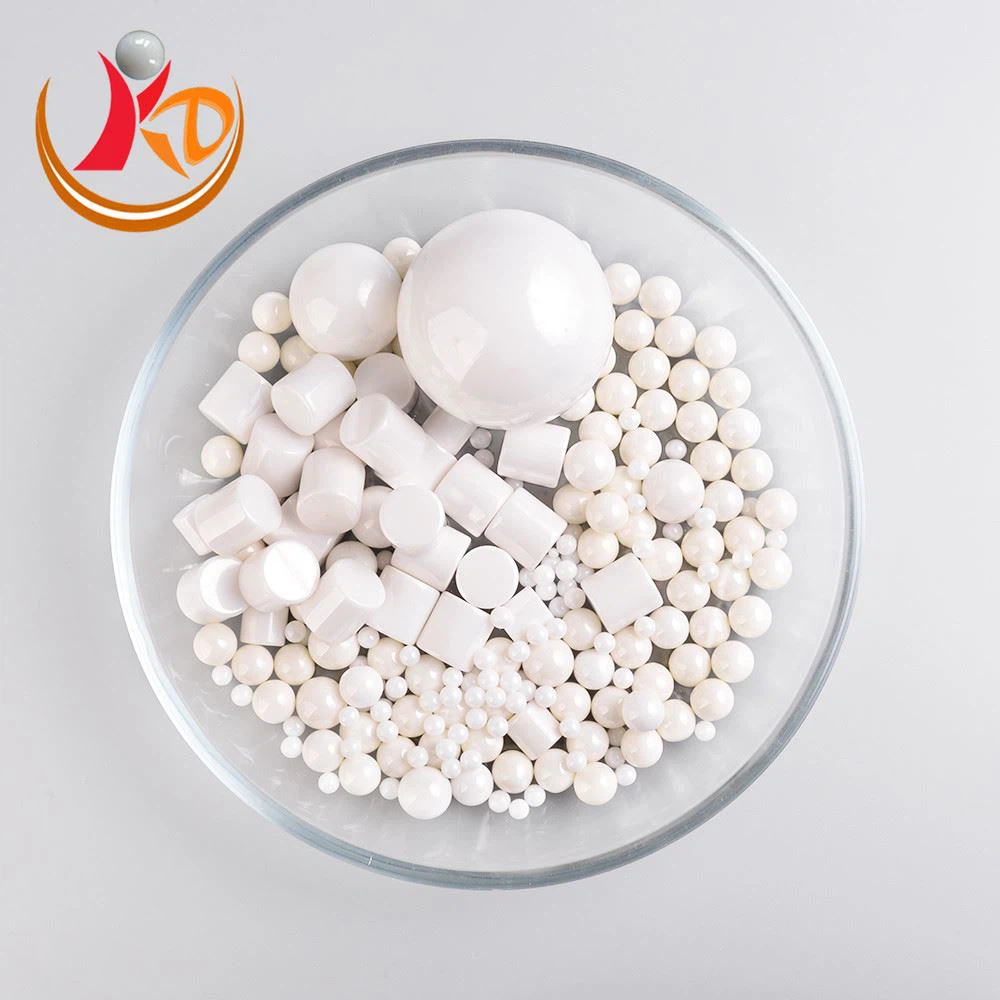

Zirconia Ball

Customer Feedback

951

952

Certificate

IMG_20210316_152532

Main Advantage

It is one of biggest manufacture to make ceramic grinding media ball in China.

SGS, ROHS certificate,Strict quality control system ISO 9001.
Professional,Sincerity,Concentration,Honesty,Constant striving for improvement,Mutual Glory.

High Quality raw material imported from Australian.

Quick-delivery, safe packing

Features

A. Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.

B.High efficiency: around 6 times higher than glass beads; 2 times than zirconium silicate beads.

C. Excellent wear resistance and fracture toughness is especially suited for high-solid-phase high viscosity, high hardness of thepaste for grinding and dispersing of pure; good match at the same time high input energy and the high shear machine sanding.

How are zirconia beads made?

Generally, high-quality microcrystalline zirconia grinding media is formed by using yttria-stabilized zirconia (Y-TZP) ultrafine powder as raw material and then densified by high-temperature sintering (1400-1600 ° C), and then self-grinding or adding super fine abrasive polishing.
