Ceramic Support Balls

Name: Customized Ceramic Support Balls Suppliers - Free Sample - KINGDA
Brand: Kingda
SKU: 171375594

Made of yttria stabilized zirconium oxide are characterized by an extremely high wear resistance. This property is based on the use of ultrafine crystalline and high-purity raw materials in the manufacturing process and on the constant chemical composition.

Send Inquiry

Product Details

Product Introduction:

Made of yttria stabilized zirconium oxide is characterized by an extremely high wear resistance. This property is based on the use of ultrafine crystalline and high-purity raw materials in the manufacturing process and on the constant chemical composition. The very good sphericity and the dense, polished surface of the beads also contribute to this wear resistance and thus to the long lifetime circle.

Specification:

Item	Test Condition	Unit&Symbol	Zirconia Ceramic
The main Chemical Ingredient			94.8±0.2% 5.2±0.2%
Bulk Density		g/cm³	≥6.02
Maximum Use Temperature			1300℃
Water Absorption		%	0
ROHS Hardness		HRA	≥83
Compressive Strength	20℃	Kgf/cm²	25000
Fracture Toughness		Map.m3/2	6-8
Coefficient of Thermal Expansion		/℃	9.5*10-6
Thermal Shock Resistance	Tc	℃	360
Volume Resistivity	20	Ω.cm20℃	1012
Roundness		%	98

Available Size:

1. From 0.1mm up to dia.50mm are available.

2. Grinding beads: ø0.1, ø0.2, ø0.3, ø0.4-0.6, ø 0.6-0.8, ø0.8-1.0mm.

Advantages:

1. Higher density provides a greater impact force resulting in superior grinding efficiency;

2. Smooth surface, almost perfect roundness/sphericity and narrow size distribution, resulting in higher productivity grinding and dispersion;

3. No cross contamination and no color shade.

Appliacation:

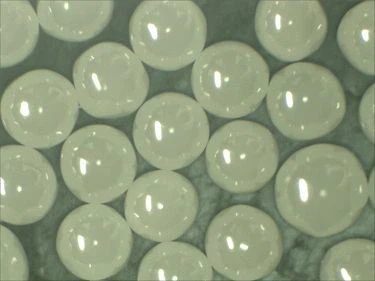

Production Details:

image003(001) image005(001)

image007(001) image009(001)

image011(001) image013(001)

● Inner Structure:

● Size Distribution:

Product name:	Yttria stabilized zirconia bead	Size:	Φ0.3mm
100pcs test result by selected random (unit: mm)
0.28	0.29	0.3	0.31	0.32
0.28	0.29	0.3	0.31	0.32
0.28	0.29	0.3	0.31	0.32
0.28	0.29	0.3	0.31	0.32
0.29	0.29	0.31	0.31	0.32
0.29	0.3	0.31	0.31	0.32
0.29	0.3	0.31	0.31	0.32
0.29	0.3	0.31	0.31	0.33
0.29	0.3	0.31	0.31	0.33
0.29	0.3	0.31	0.31	0.33
0.29	0.3	0.31	0.32	0.33
0.29	0.3	0.31	0.32	0.33
0.29	0.3	0.31	0.32	0.33
0.29	0.3	0.31	0.32	0.33
0.29	0.3	0.31	0.32	0.33
0.29	0.3	0.31	0.32	0.33
0.29	0.3	0.31	0.32	0.34
0.29	0.3	0.31	0.32	0.34
0.29	0.3	0.3	0.3	0.36
0.29	0.3	0.3	0.3	0.3

HTB1HCFTqL5TBuNjSspcq6znGFXav
