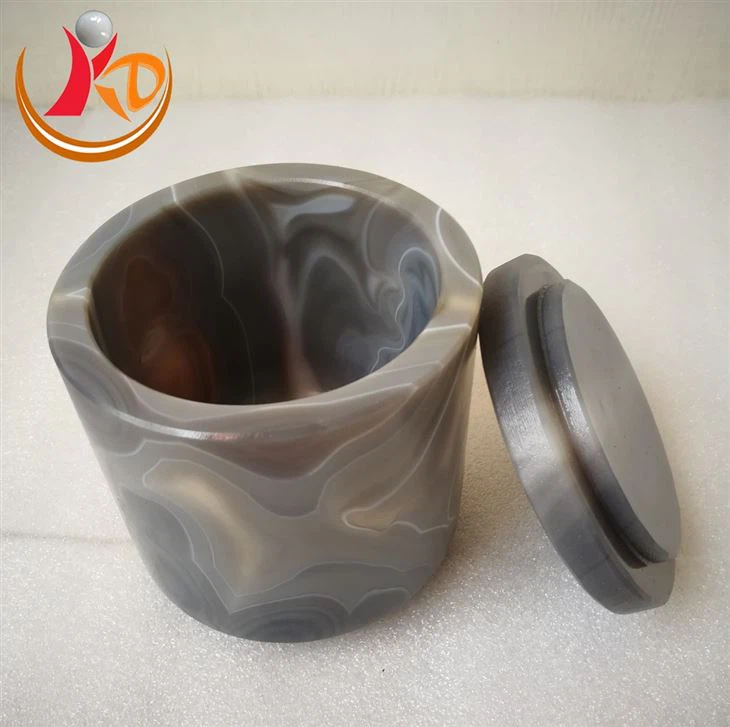

Agate Mill Jar

Name: Agate Mill Jar
Brand: Kingda
SKU: 111136237

High purity natural Brazilian agate (99.92% SiO₂) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination.

Send Inquiry

Product Details

Product Introduction:

Specification:

Parameter of Agate Ball Mill Jar
Volume of Jar	Outside Diameter (mm)	Inner Diameter (mm)	Inner Depth (mm)	Height of Not Containing Cover (mm)	Total Height (mm)	Weight (KG)
50ml	65	45	37	49	58	0.36
100ml	75	50	52	62	70	0.56
150ml	90	62	55	70	80	0.93
250ml	93	73	70	80	90	0.84
300ml	102	79	71	81	95	1.18
400ml	106	80	80	93	103	1.38
500ml	104	86	90	100	110	1.31
1L	133	107	114	126	140	2.54
2L	156	130	155	170	185	4.43
Remarks: 1. Size deviation within ±2mm; 2. Packaged 1mm stainless steel outside as request; 3. The above weight is for A grade agate jars, deviation within ±0.2Kg.

Features:

1.	No impurities, no crack, high gloss, resistance to strong shaking force. Experiment has proved that after high speed vibration and wearing, agate jar has no crack or no bump phenomenon.
2.	KINGDA agate mill jar is made of Brazil and Uruguay agate nature raw material with bright color and high hardness.
3.	With characteristics of high temperature resistance, strong acid resistance and alkali resistance. Agate mill jar can be used in the acid grinding media.
4.	Minor cracks on the walls of the jar is normal and occurs naturally.

Product Details:
