50ml-1L milling Jar

Highly polished Yttrium stablized ZrO2 jars has the performance of high wear resistance. Its hardness is 60 times of ordinary steel. The grinding/mill jars are widely applied in the field of paint,ink, geology, metallurgy, electronics, constrcution material, ceramics, chemical engineering, medicine, envirionmental protection and so on.

Send Inquiry

Product Details

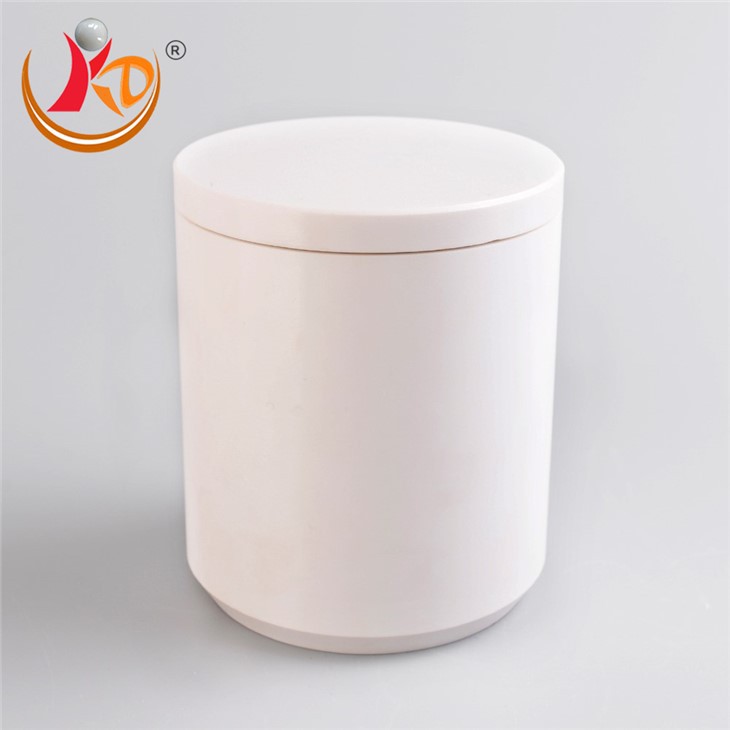

50ml-1L milling Jar

Products Description

50ml-1L milling Jar,Highly polished YSZ (Yttrium stabilized ZrO₂) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding/mill jars are widely applied in the field of paint, ink, geology, metallurgy, electronics, construction material, ceramics, chemical engineering, medicine, environmental protection and so on.

Physical Parameters

General specifications
Main Materials	Zirconium Oxide -ZrO₂
Chemical composition
Element	Share %
ZrO₂	≥94.5
Y₂O₃	5.15
TiO₂	0.0018
P	< 0.035
SiO₂	0.007
Fe₂O₃	0.0009
S	< 0.03
N	< 0.25

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG; 3. Customized jar is acceptable.

Application

Products Details

_DSC8930_ _DSC8931_

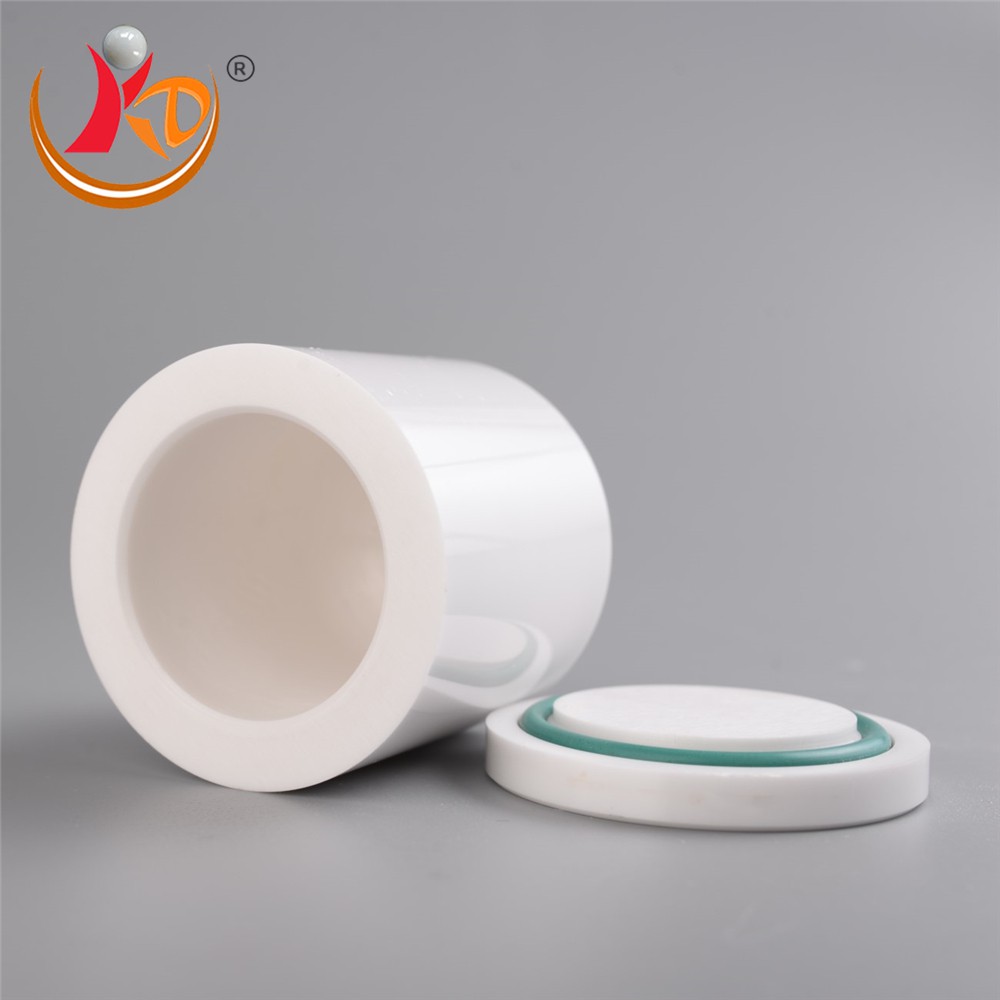

_DSC8934_ _DSC8937_

Customer Feedback

50ml-1L milling Jar

Package

Is zirconia a ceramic?

Zirconia (ZrO2) is a ceramic material with adequate mechanical properties for manufacturing of medical devices. Zirconia stabilized with Y2O3 has the best properties for these applications.
