White Zro2 Ceramic Ball

Name: White Zro2 Ceramic Ball
Brand: Kingda
SKU: 173911434

The grinding/mill jars are widely applied in the field of paint, ink, geology, metallurgy, electronics, construction material, ceramics, chemical engineering, medicine, environmental protection and so on.

Send Inquiry

Product Details

Product Introduction:

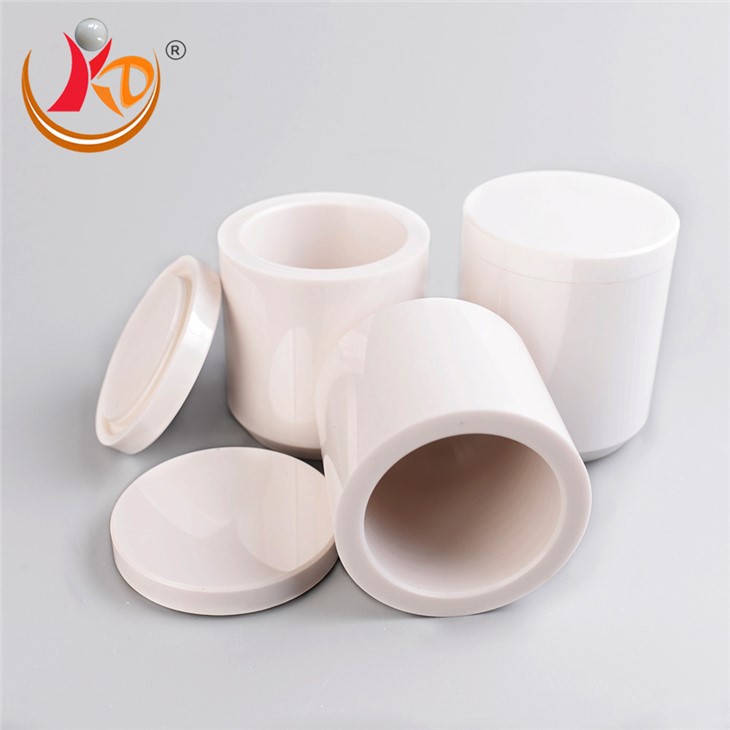

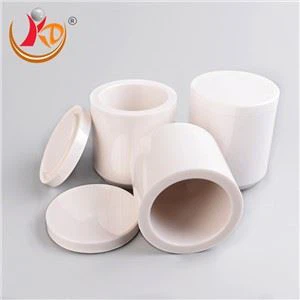

Highly polished YSZ (Yttrium stabilized ZrO₂) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding/mill jars are widely applied in the field of paint, ink, geology, metallurgy, electronics, construction material, ceramics, chemical engineering, medicine, environmental protection and so on.

Physical Parameters:

General specifications
Main Materials	Zirconium Oxide -ZrO₂
Chemical composition
Element	Share %
ZrO₂	≥94.5
Y₂O₃	5.15
TiO₂	0.0018
P	< 0.035
SiO₂	0.007
Fe₂O₃	0.0009
S	< 0.03
N	< 0.25

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG; 3. Customized jar is acceptable.
