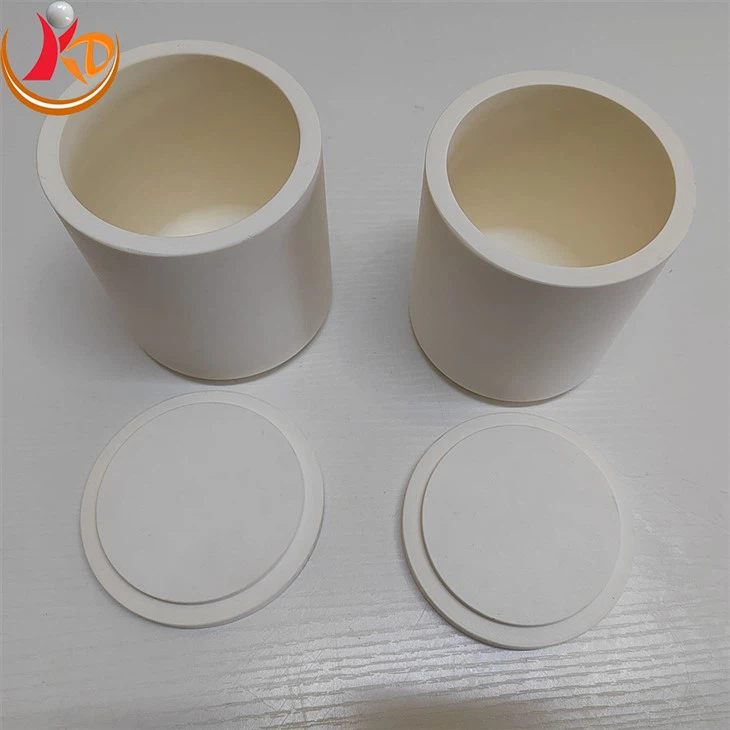

Polished Alumina Ceramic Jars

Name: Polished Alumina Ceramic Jars
Brand: Kingda
SKU: 204798155

Product Description Polished alumina ceramic jars. These jars are used whenever small quantity of samples need to be grinded. They are extensively applied to in the fields of Paint, Ink, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry,...

Send Inquiry

Product Details

Product Description

Polished alumina ceramic jars. These jars are used whenever small quantity of samples need to be grinded. They are extensively applied to in the fields of Paint, Ink, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed alumina ceramic grinding balls.

Composition

(%)

Specific Gravity

(G/CM³⁾

Hardness

(Mho's)

Capacity

(ml)

Al²O₃:≥ 99.0

≥ 3.8

0.05;100;250;

500;1000;1500;2000;3000

Dimesion (offer OEM & ODM Service)

Jar Volume	OD (mm)	ID (mm)	Total Height (mm)
50ml	55	38	67
100ml	65	50	75
250ml	92	74	88
500ml	100	84	118
1000ml	128	108	150
1.5L	132	112	175
2.0L	158	138	162
3.0L	158	138	220

Note: 1. Jar size of each patch will control tolerance ±3mm. One set includes: jar + lid + sealing gasket.

2. We can customize different volume according to client's request.

Gringing Jar Ball Configurations

Grinding Jar Volume	100ml	250ml	500ml	1000ml
Compatible Ball Weight	66g	165g	330g	660g
Φ5mm grinding balls (0.25 g/pc)	106 pcs	300 pcs
Φ10mm grinding balls (1.99 g/pc)	20 pcs	76 pcs	50 pcs	100 pcs
Φ15mm grinding balls (6.72 g/pc)		4 pcs	30 pcs	59 pcs
Φ20mm grinding balls (15.92 g/pc)			3 pcs Grinding Jar Volume	5 pcs

These values are just clues: the number of balls should be determined experimentally if necessary.

Features:

1. High purity: Al2O3> 99%, good chemical corrosion resistance.
2. Good temperature endurance, long-term use at 1600 °C, 1800 °C short-term.
3. Good rapid thermal shock resistance, not easy to burst.
4. Slip Casting with high density.

Packaging & Shipping

Application Fields:
