2L Planetary Ball Mill For Laboratory Grinding

A vertical planetary ball mill is an essential tool for combining high-tech materials, fine grinding, creating samples, developing new products, and small batch manufacturing. Tencan's planetary ball mill has a small footprint, high efficiency, low noise, and functional characteristics, making it the perfect tool for laboratories at research and development organizations, universities, and businesses (each experiment can get four samples at the same time). When a vacuum ball mill tank is present, it obtains powder samples in a vacuum environment.

Send Inquiry

Product Details

Application Field

2L Planetary Ball Mill For Laboratory Grindingt is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc. It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.

Working Principle

When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials .
It has 3 types of mill methods:dry mill; wet mill ; vacuum mill. Two or four grinding jars can work together.
(Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to customer's feedback, minimum granularity can be as small as 0.1 um).

Products Description

Specification

Products Paramenters

Model No.	XQM-2L
Max volume of each matched Jar	500ml
Voltage	220V - 50Hz / 110V - 60Hz
Machine Size	750470590mm
Machine Weight	80 Kg without mill jar
Work mode	2 or 4 jars working together
Mill mode	Dry / wet milling
Speed Frequency	Adjusting
Drive Mode	Gear drive
Rotational Speed	70-670 r/min, adjusting
revolution: rotation	1:2
Material Capacity	material + mill balls < 2/3 volume
Input Granularity Size	< 10mm for soft material, < 3mm for hard material
Output Granularity Size	minimum 0.1μm
Field of application	Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Feed material	Soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore, pharmacy, chemical, fluorescent, pigment etc.
Type of grinding jars	Stainless steel, zirconia, alumina, nylon, PU, tungsten, PTFE etc., vacuum jars are available as well.
Type of grinding medium	Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.
Max. continuous operating time (full-load)	72 hours
Interval operation	yes, with direction reversal
Certificate	ISO 9001. CE certificate

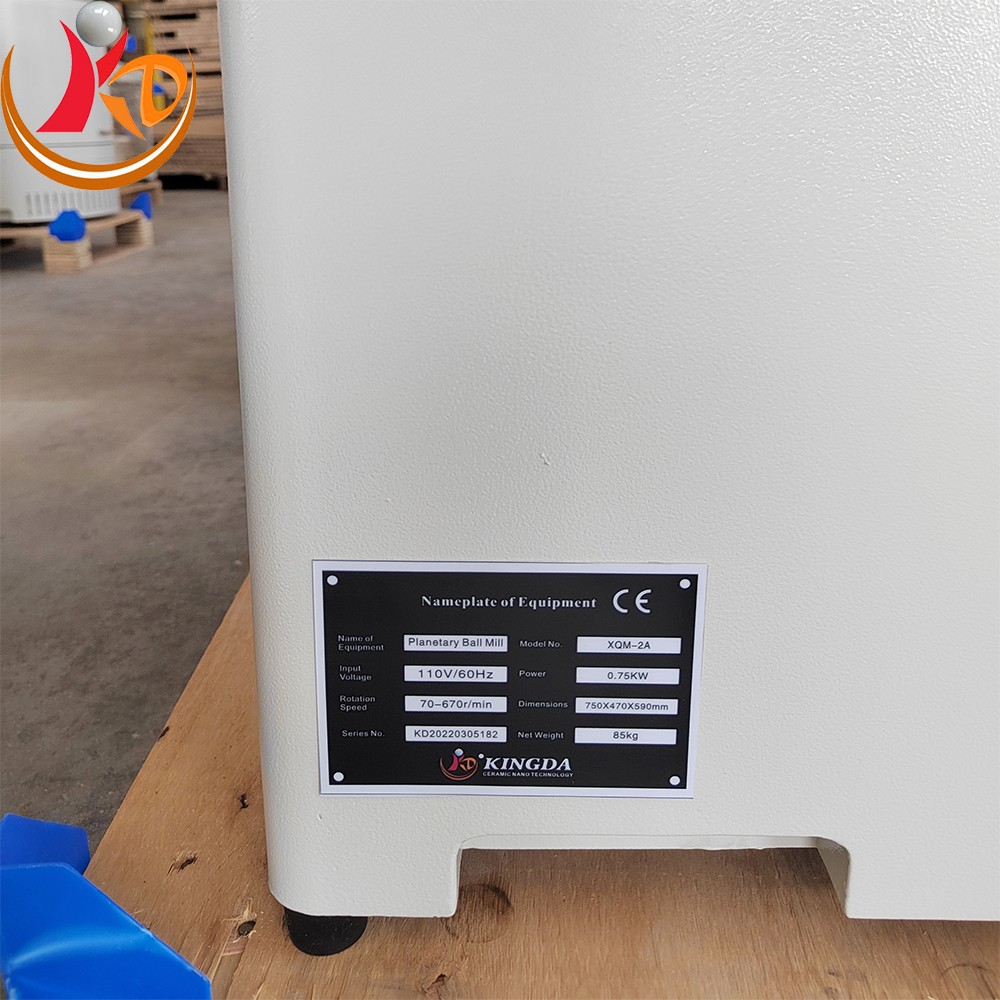

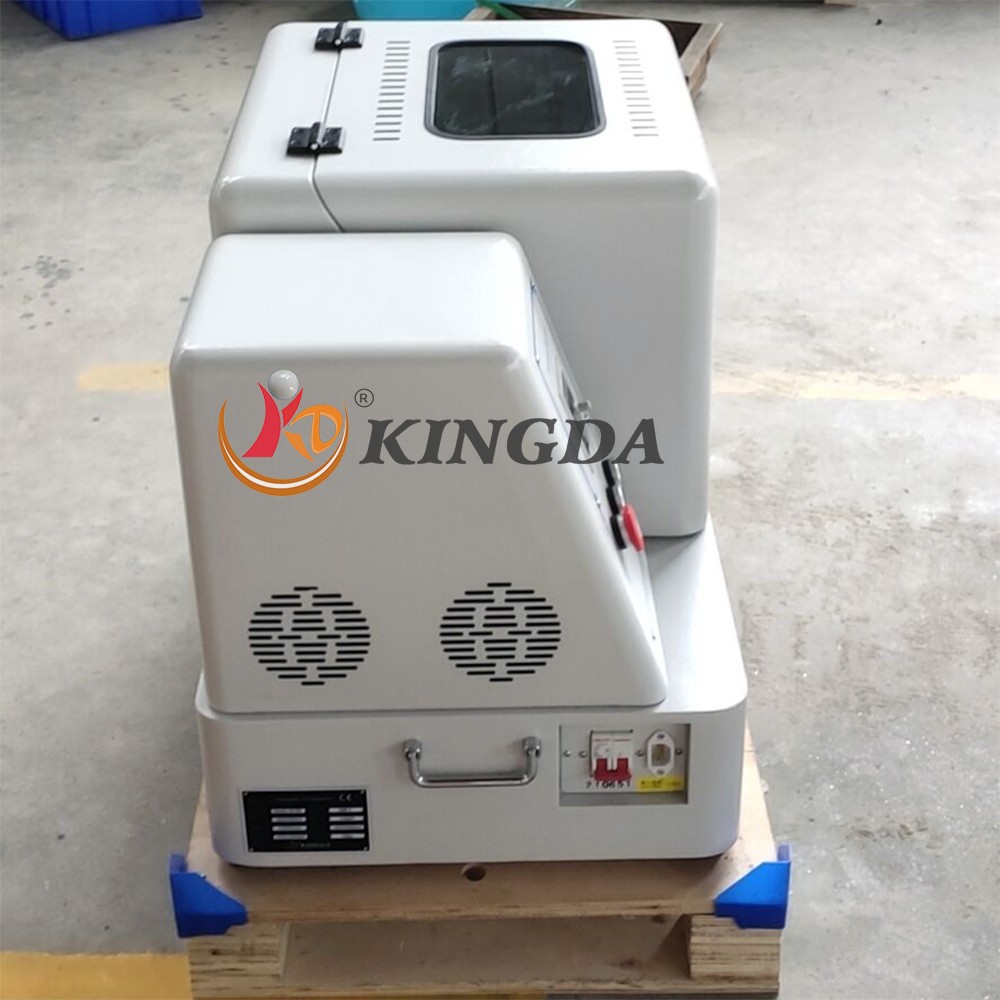

Products Picture

2L Planetary Ball Mill For Laboratory Grinding

Ball Mill
